Pneumatic clamping saw blade matrix;
Clamping the tool head to the center;
The tool head and base body can be adjusted to align respectively.
Collet and splint through water cooling;
The lifting system adopts ball screw and linear bearing;
Compressed air cooling after welding.
Apply Area
Main Features
Welded Tooth Shape

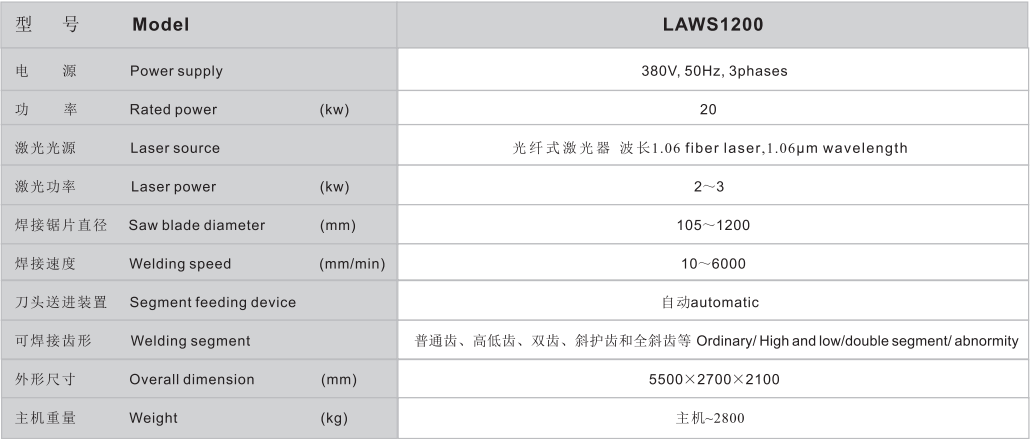

Main Technical Data
Objectives of The Project
Unmanned welding production line: realize the unmanned production of saw blade welding, automatic loading and unloading of the production process, automatic transfer, automatic welding, automatic detection, automatic storage of products in the whole process of automation, intelligent production and detection.
The storage system realizes automatic access of raw materials and finished products through intelligent equipment.
High energy density laser beam was used as heat source to weld the cutter head and saw body efficiently and precisely.
ABB six-axis robot is used for material transfer.
Test the strength of each welding point of the saw blade; The detection data is directly entered into MES data system, and the data can be traced.
Intelligent storage system
Intelligent material transfer system
Saw blade strength detection system
Saw blade laser welding system
Transfer Robot Main Action
